EVH 5150 Limited Edition Deluxe Ash Electric Guitar

EVH 5150 Limited Edition Deluxe Ash Electric Guitar

Engineered for speed, comfort and full-throttle attitude, the reimagined 5150™ Series Deluxe is an iconic blast from the past that blends both throwback and modernized features.

Like its predecessor, the Limited Edition 5150 Deluxe Ash features a modified Strat®-style body with a deeper upper body curve. The ash body is paired with a graphite-reinforced bolt-on quartersawn maple neck that has a comfortable modified “C” profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and “hockey stick” headstock with EVH® logo decal. Built for smooth and speedy playability, the 12”-16” compound radius ebony fingerboard has 22 jumbo frets and cream dot inlays.

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 Deluxe is outfitted with a dual humbucking configuration controlled by a three-way toggle on the upper bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucking neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects — think “You Really Got Me.”

Decked out with a “dive-bomb” certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

A modern spin on a fan favorite, the Limited Edition 5150 Deluxe Ash is elegance personified with a Natural stain finish and all-chrome hardware, including the EVH-branded Gotoh® tuning machines.

SETUP & INSPECTED BY OUR TECH TEAM

No case/bag

Weight: 8.2 lbs

BODY

Body Finish: Satin Body Shape 5150™

Body Material: Ash

ELECTRONICS

Bridge Pickup: Direct Mount EVH® Wolfgang® Humbucking

Neck Pickup: Direct Mount EVH® Wolfgang® Humbucking

Pickup Color: Black

Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)

Pickup Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Auxiliary Switching: Kill Switch

Pickup Configuration: HH

NECK

Neck Material: Quartersawn Maple

Neck Construction: Bolt-On with Graphite Reinforcement

Neck Thickness: .790" at 3rd Fret & .810" at 12th Fret

Neck Finish: Hand-Rubbed Satin

Neck Shape: EVH® Modified "C" Backshape

Scale Length: 25.5" (64.77 cm)

Fingerboard Radius: 12"-16"

Compound Radius: (304.8 mm to 406.4 mm)

Fingerboard Material: Ebony

Number of Frets: 22

Fret Size: Jumbo

Nut Material: Floyd Rose® R3 Locking

Nut Width: 1.685" (42.8 mm)

Position Inlays: White Dot

Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel

Truss Rod Wrench: 2.5 mm Hex

String Trees: Floyd Rose® Retainer Bar

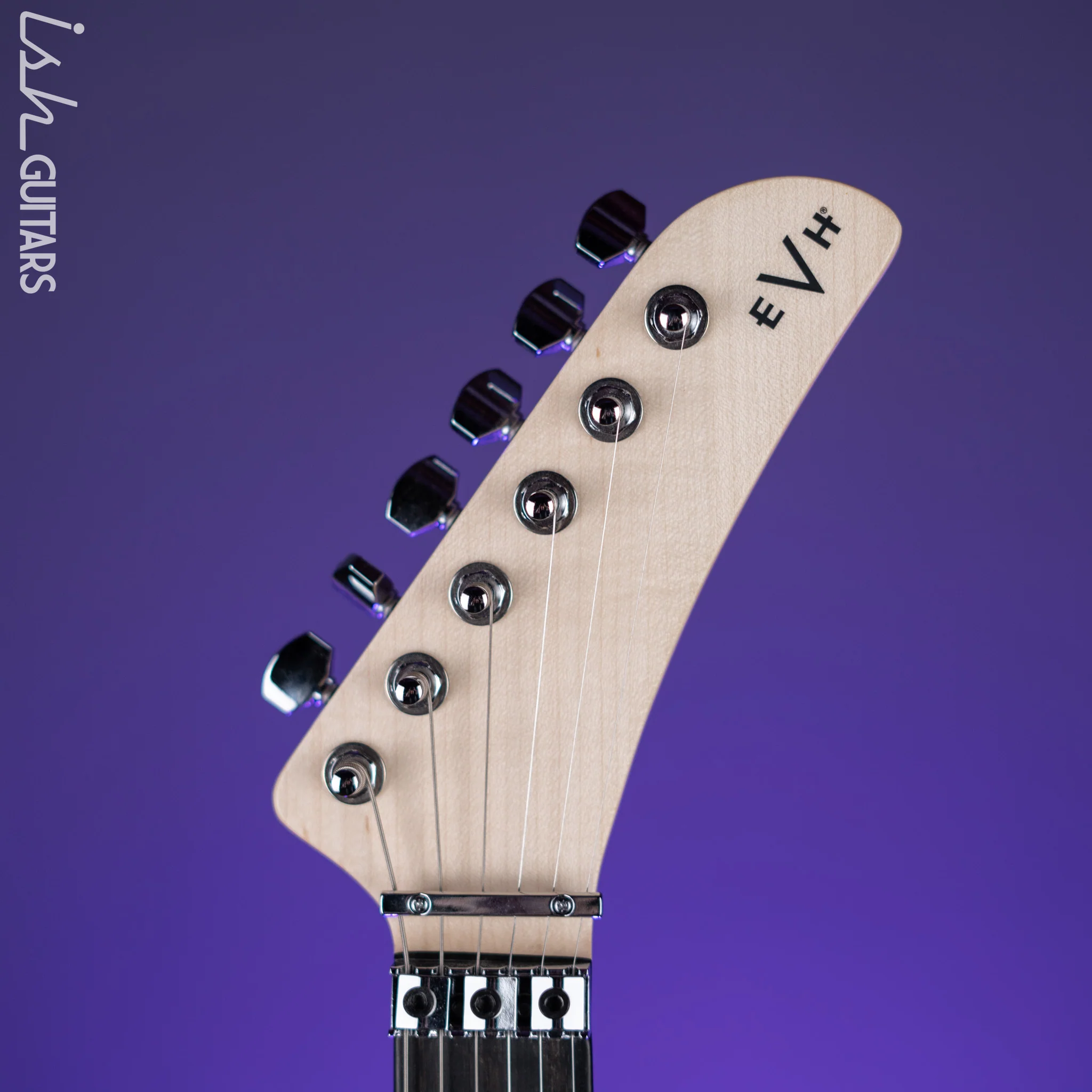

Headstock: EVH® Hockey Stick

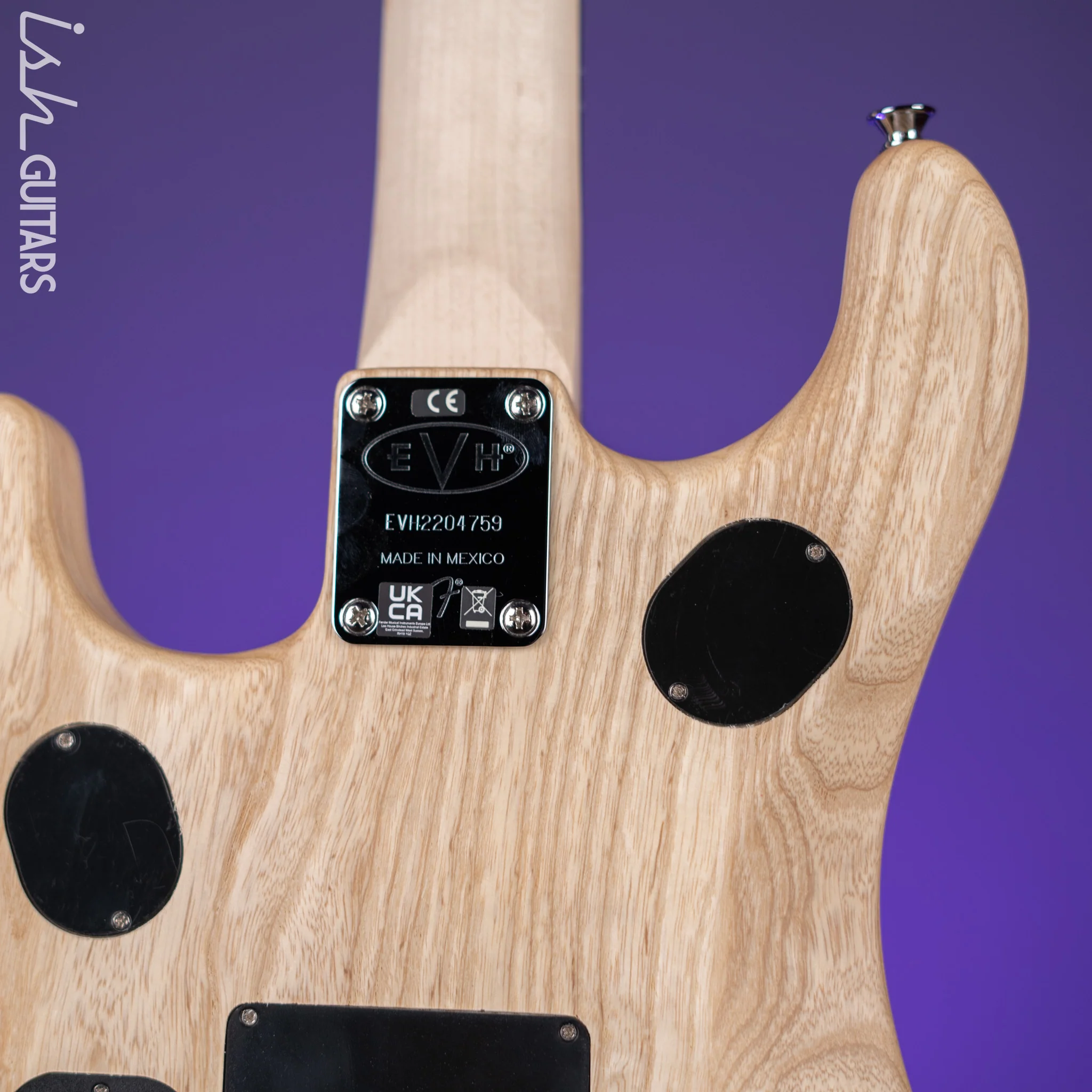

Neck Plate: 4-Bolt Standard

HARDWARE

Bridge: Top-Mount EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®

Hardware Finish: Chrome

Tremolo Arm: Floyd Rose® 1000 Series Locking

Tremolo Block: Brass

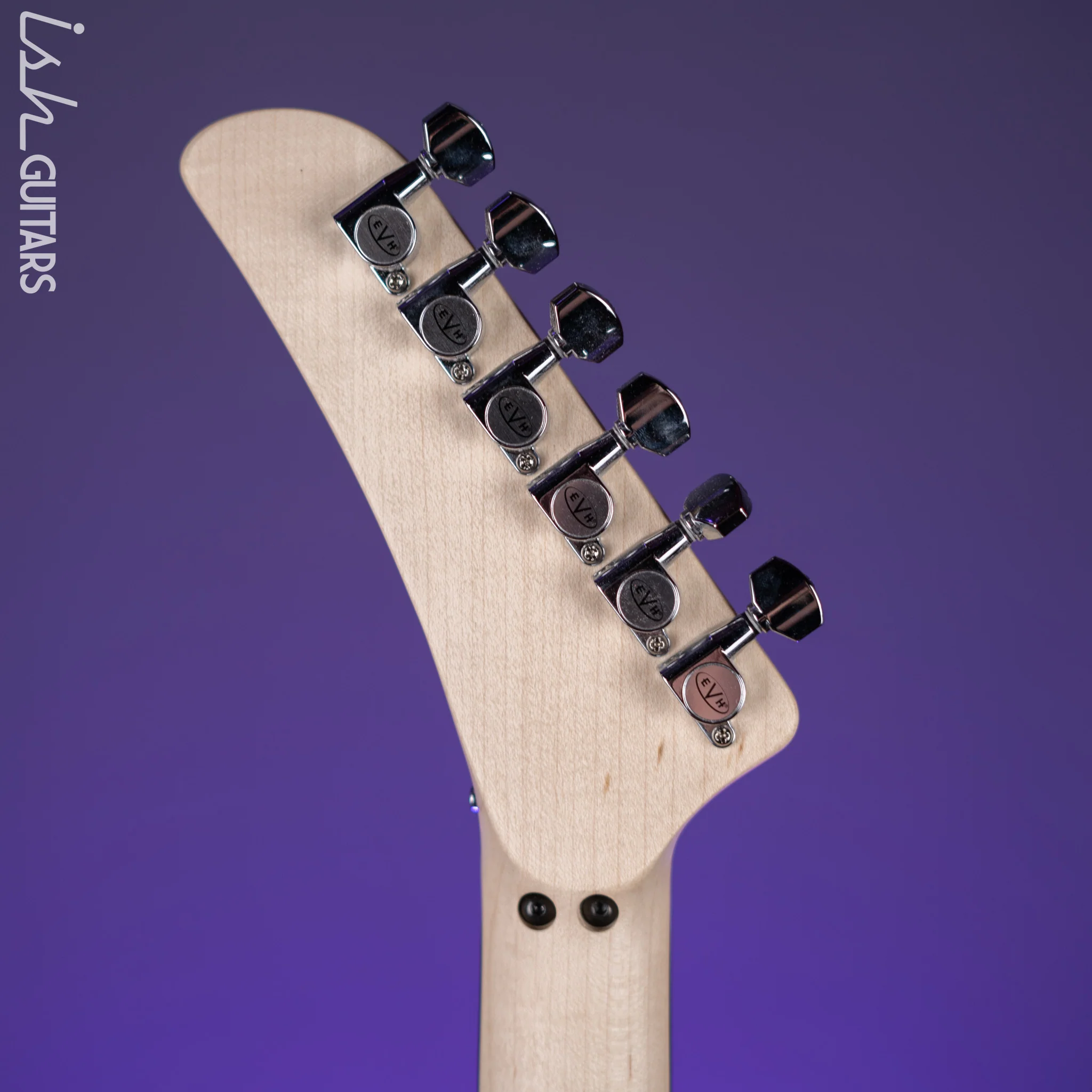

Tuning Machines: EVH®-Branded Gotoh®

Control Knobs: Black Plastic

MISCELLANEOUS

Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)

Strap Buttons: Oversized
