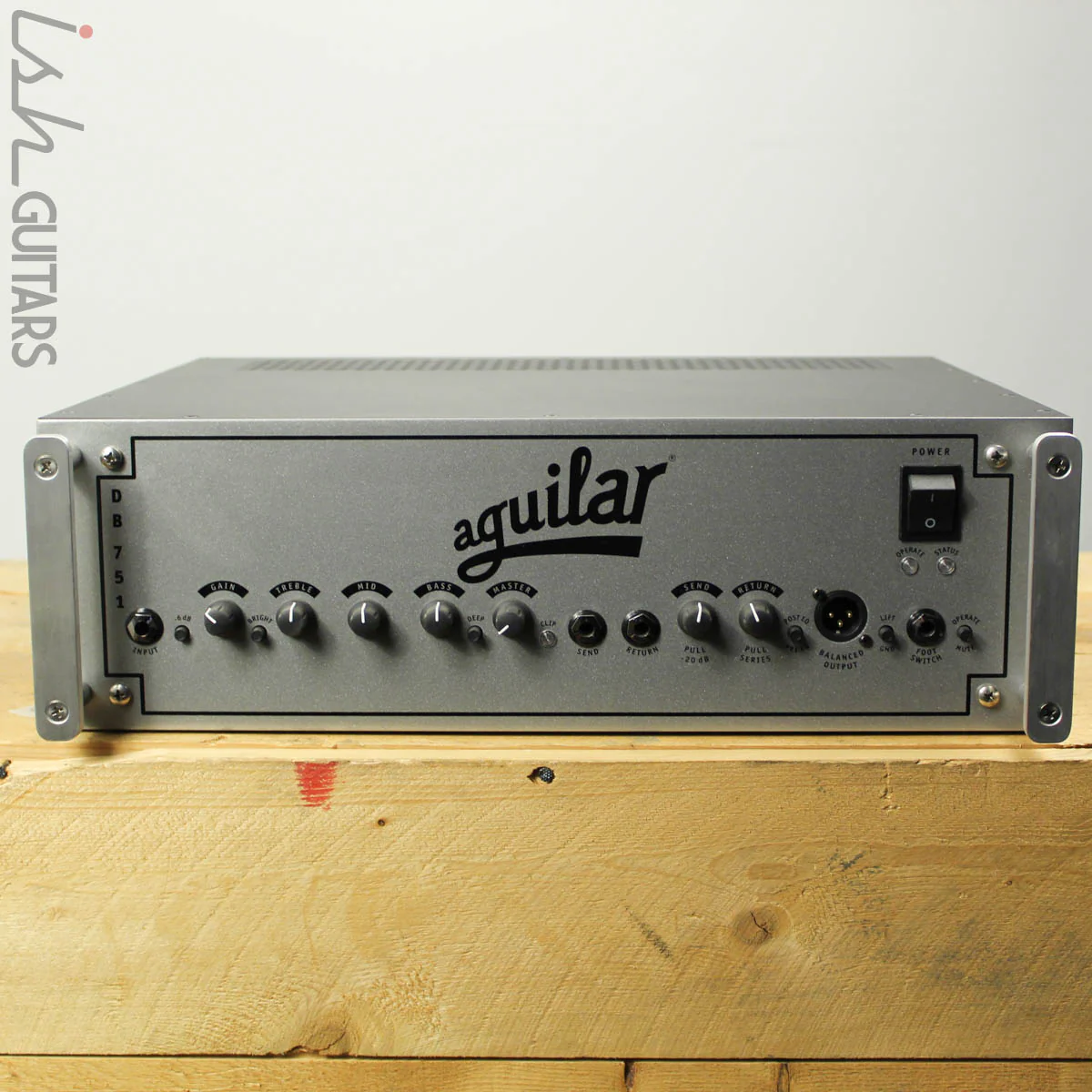

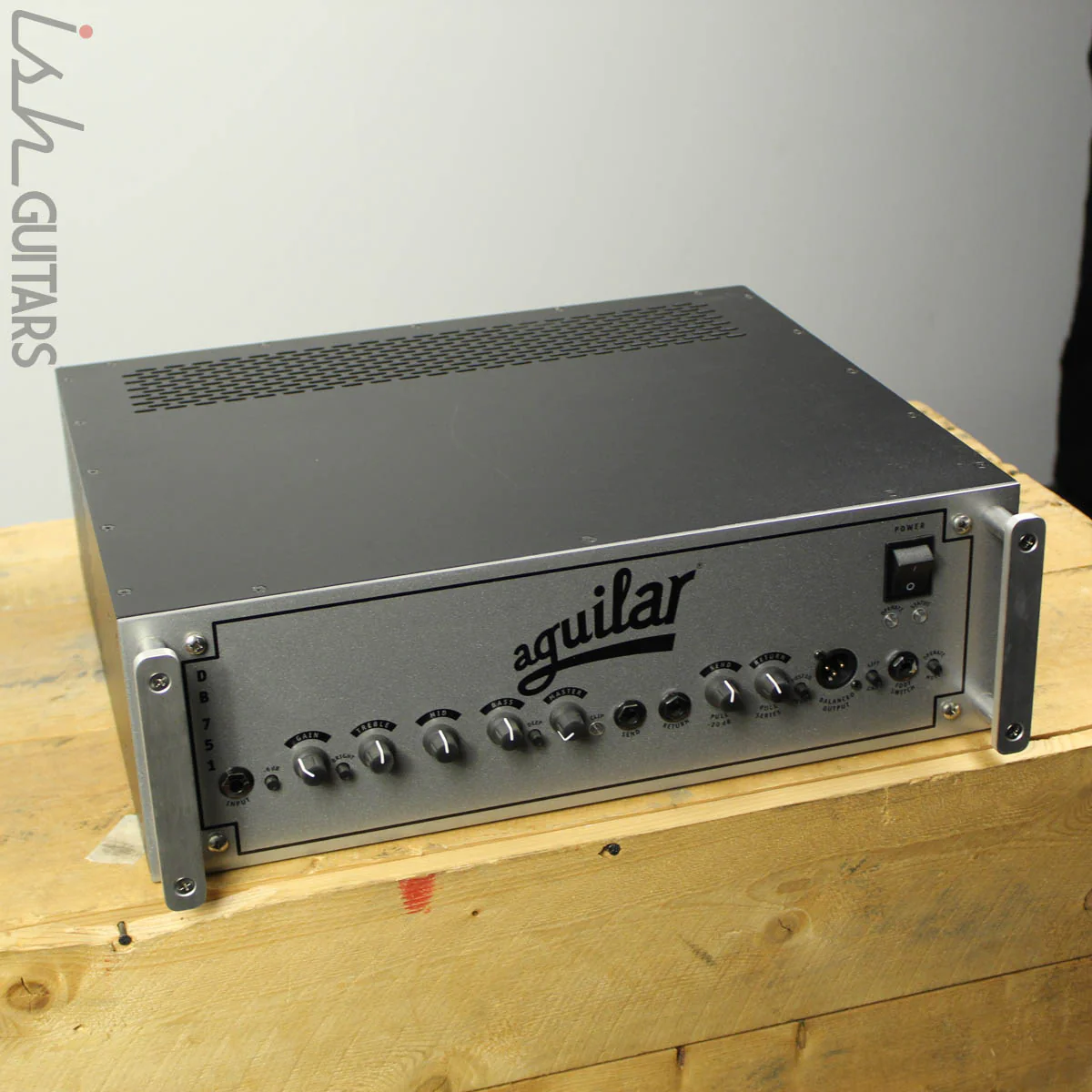

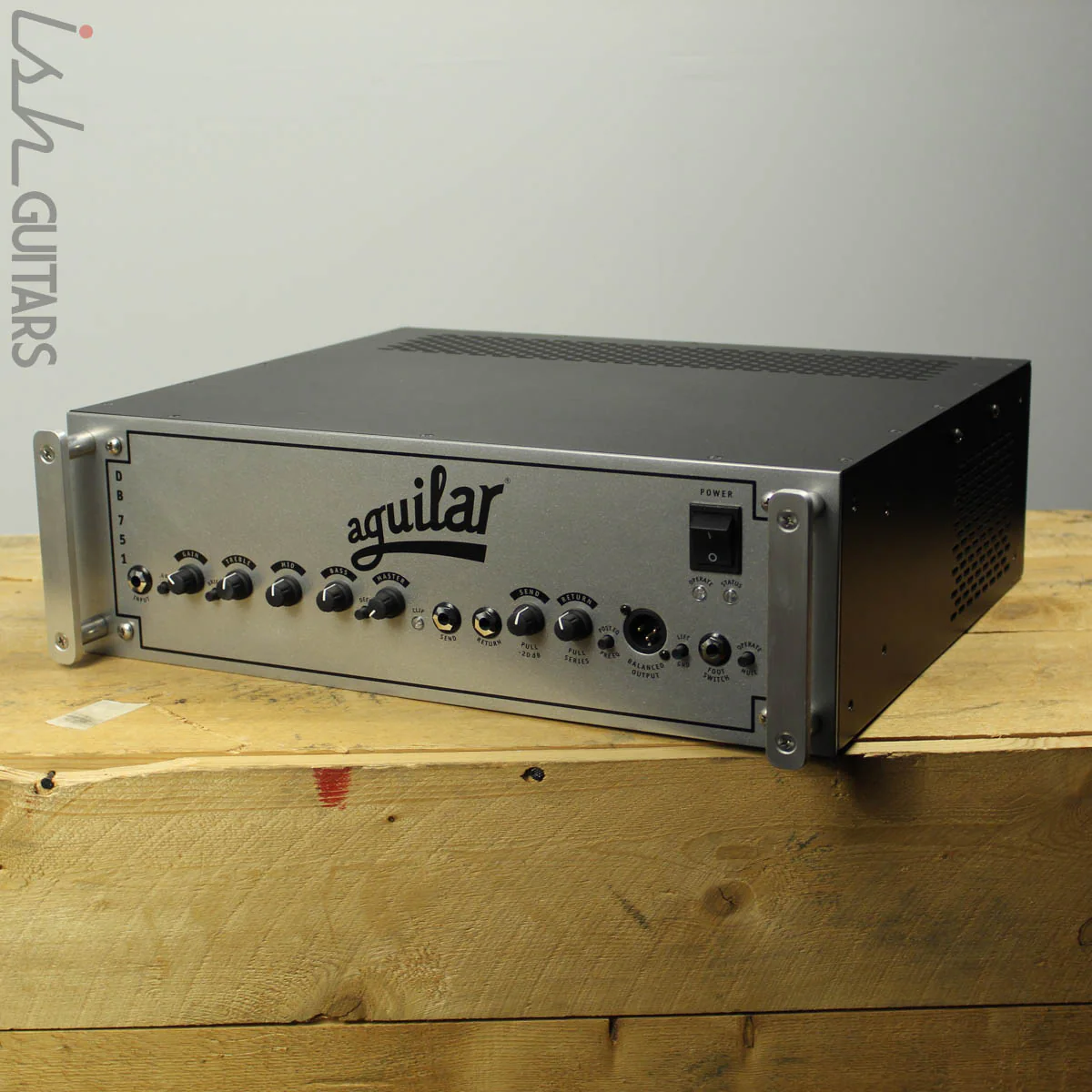

The DB751 combines the legendary tube-driven tone of the DB 750 with greater EQ control. A perfect combination of raw power and excellent tone, the DB 751 continues the legacy set by the world famous DB750. Delivering 975 Watts at 2 ohms and 750 Watts at 4 ohms, this amp has the headroom you need to play any size venue.
Self-Diagnostic Protection Circuit and Thermal Overload Protection Circuit (both with LED indicators)
Power Output: 975 watts @ 2 ohms, 750 watts @ 4 ohms, 400 watts @ 8 ohms
Preamp Section: Three 12AX7’s
Power Section: 12 complimentary lateral MOSFETs
Transformer: Custom Aguilar toroidal power transformer

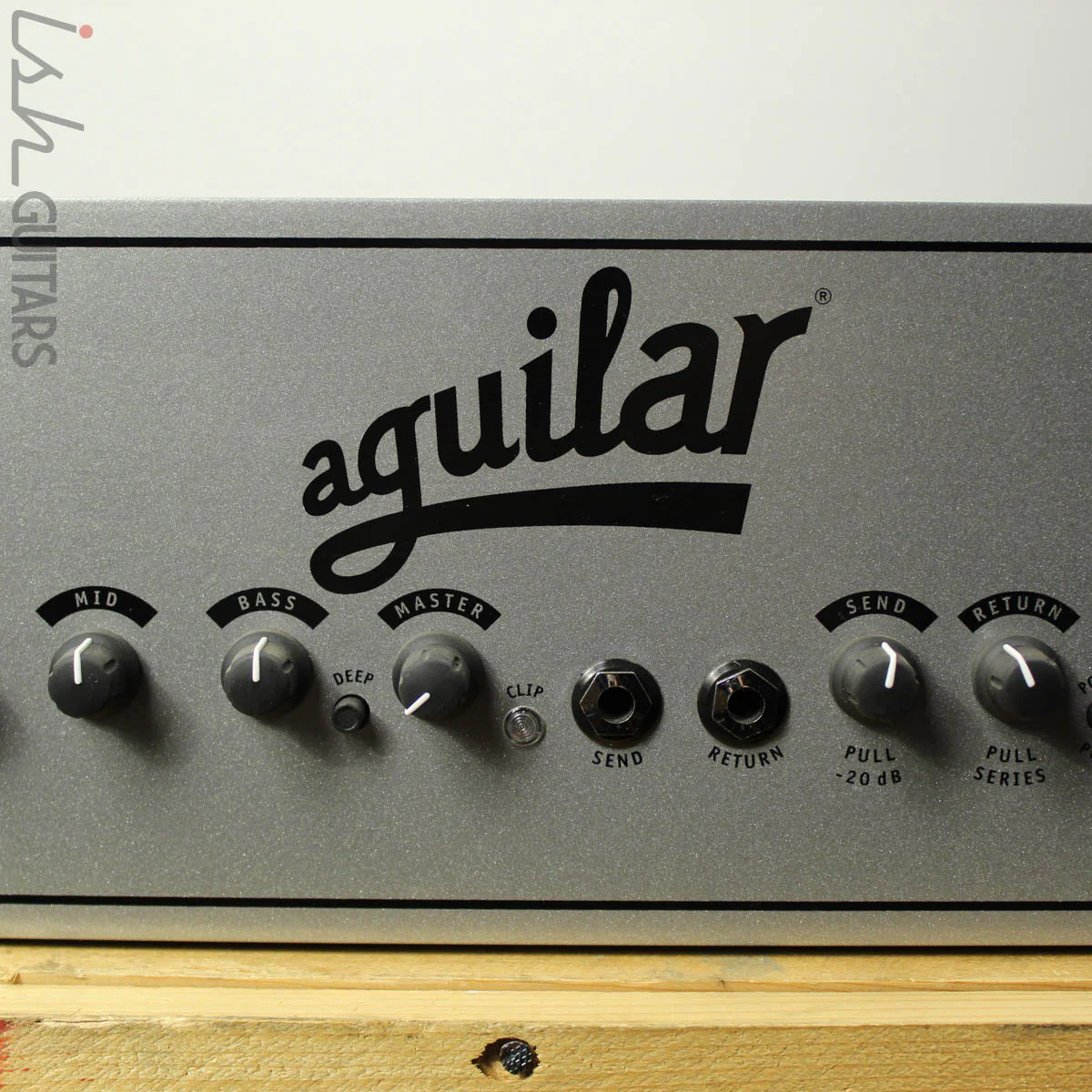

EQ Section: passive tone stack with active midrange element
Bass: +12 / -12 @ 40Hz
Midrange: +12 / -12 @ 750Hz
Treble: +12 / -7 @ 4kHz
Deep Switch: Adds 5 dB of broadband boost at 30 Hz
Bright Switch: Adds 5 dB of broadband boost at 5-7 kHz
Effects Loop: Send is push/pull for line or instrument level; Return is push/pull for parallel or series operation

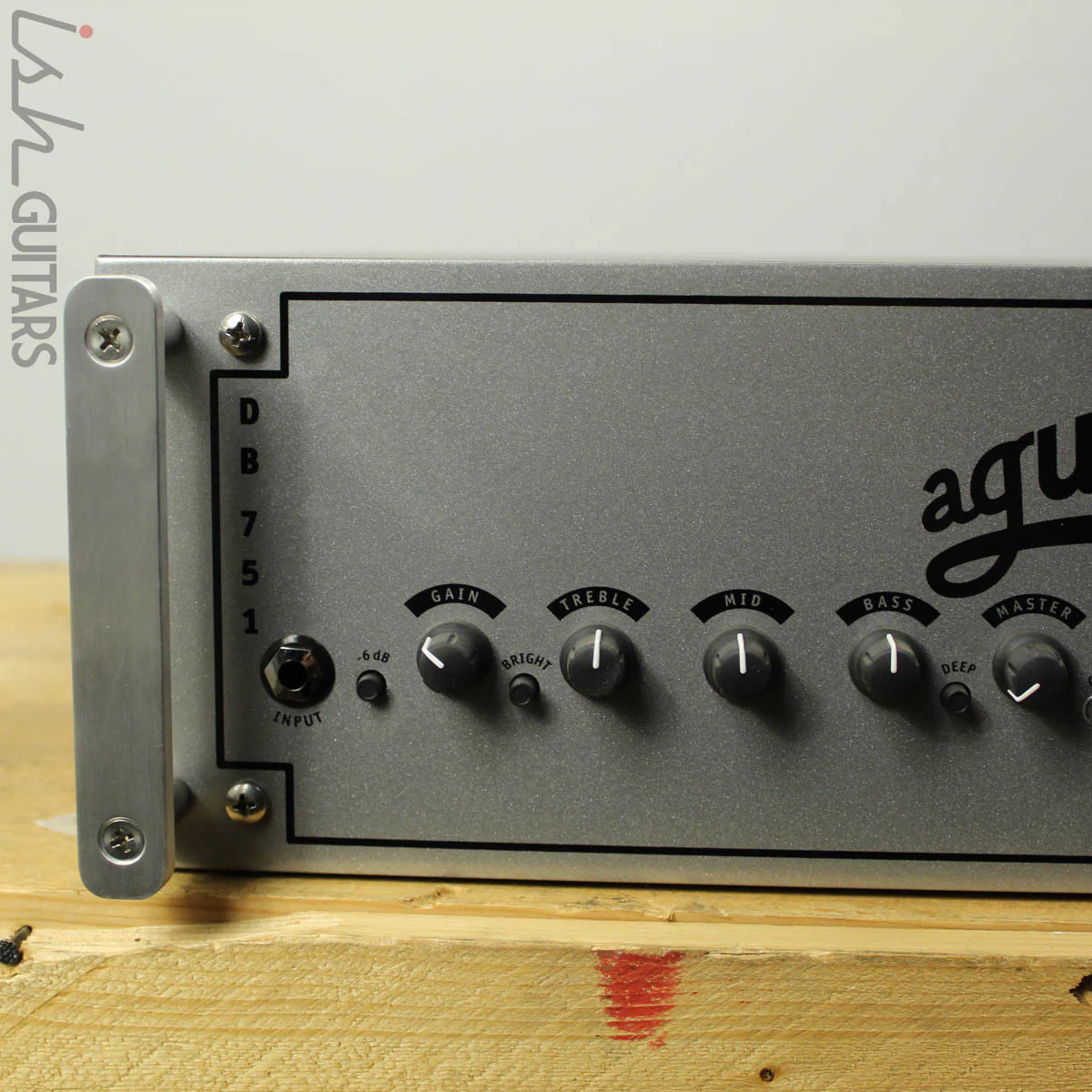

Inputs: One 1/4″ input jack with an active/passive switch

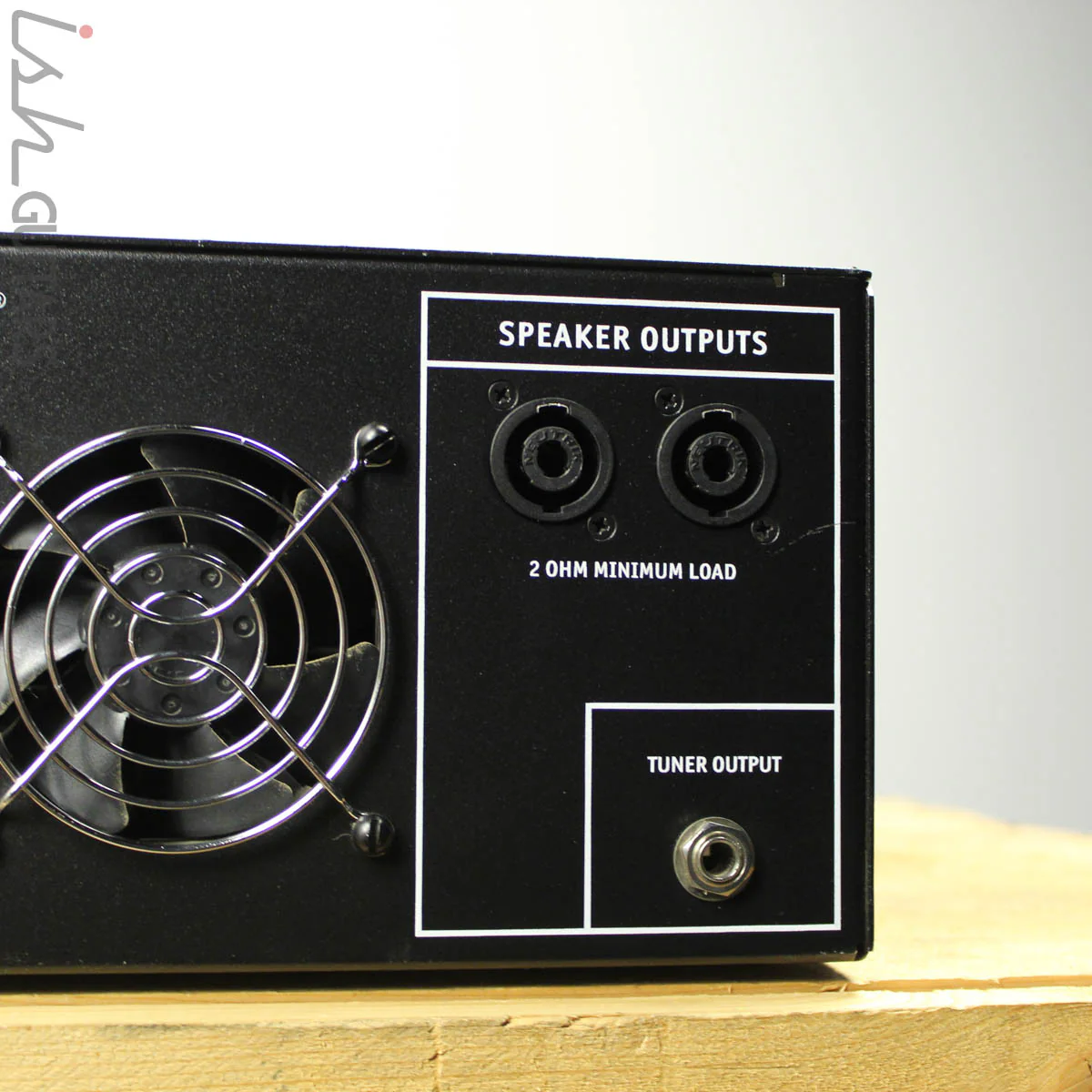

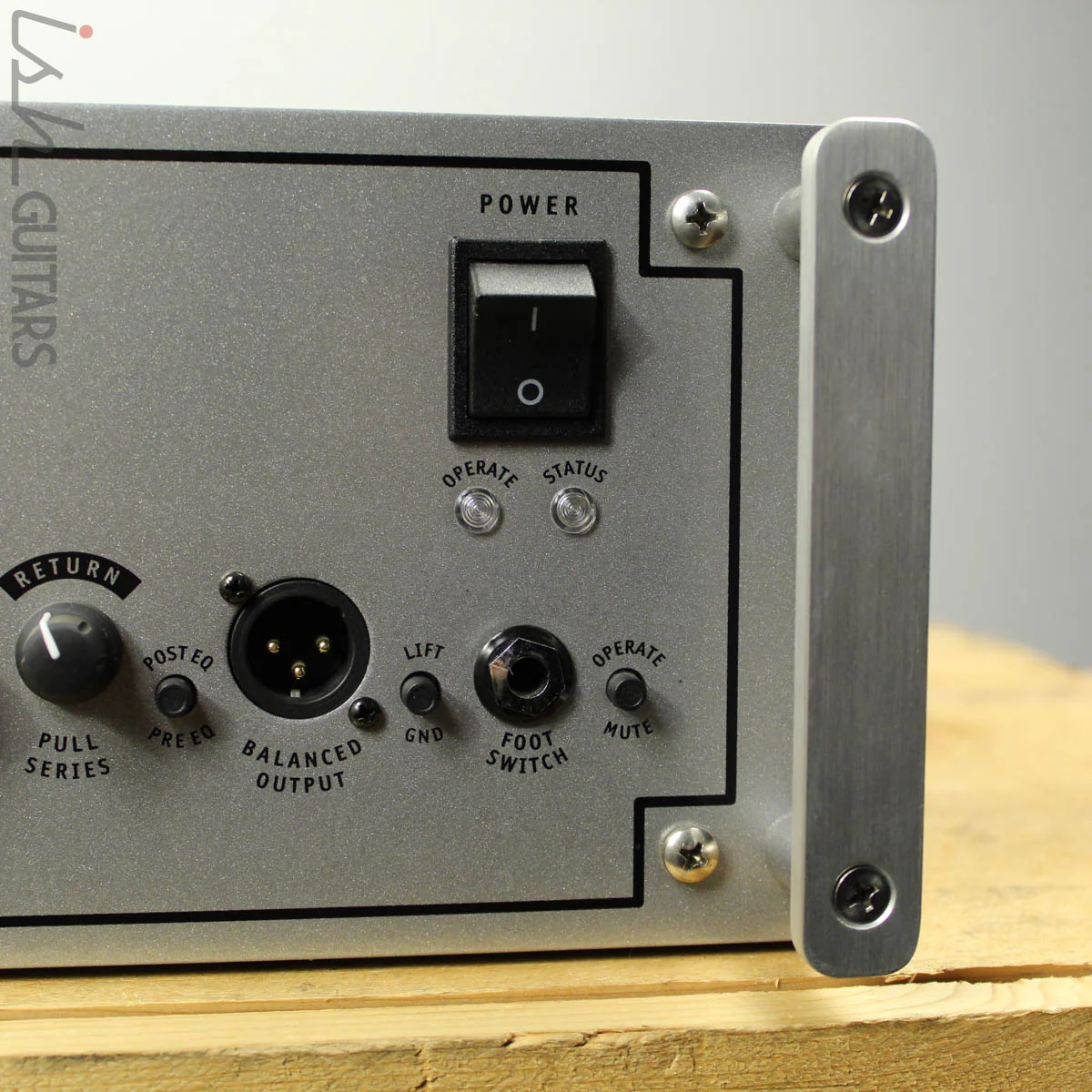

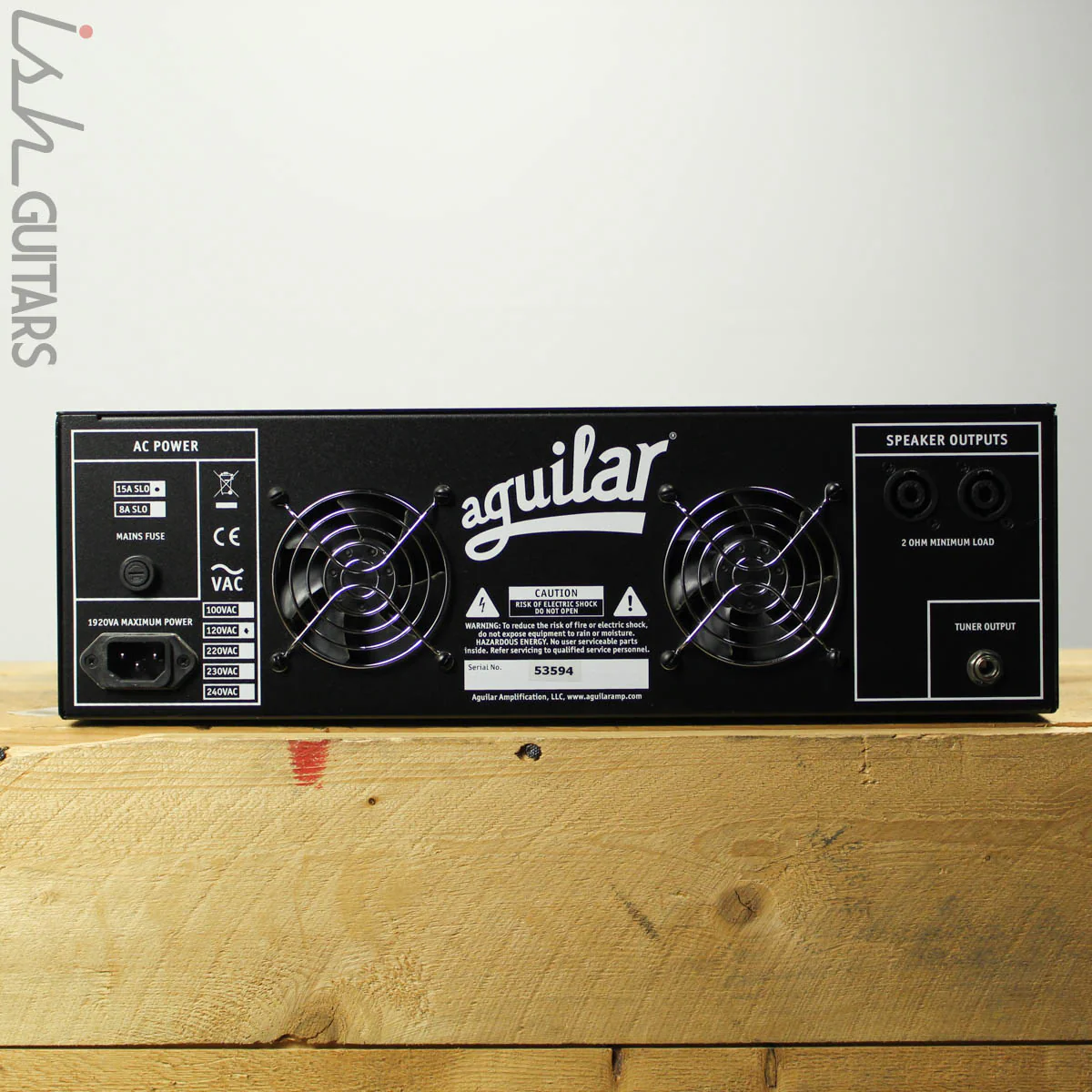

Outputs: Two Neutrik Speakon speaker outputs, Jensen XLR balanced output (with pre/post EQ and ground lift switch) and Tuner out.

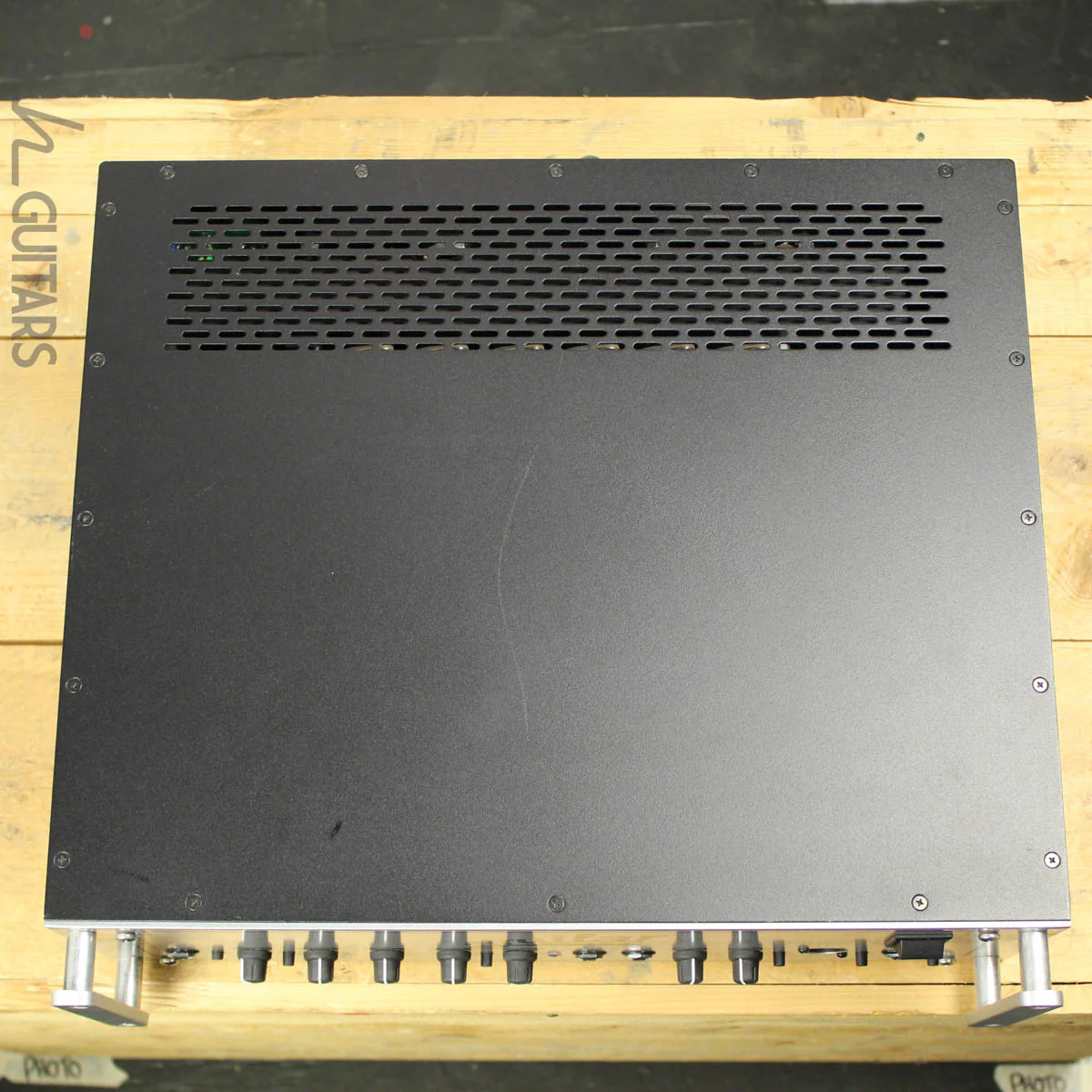

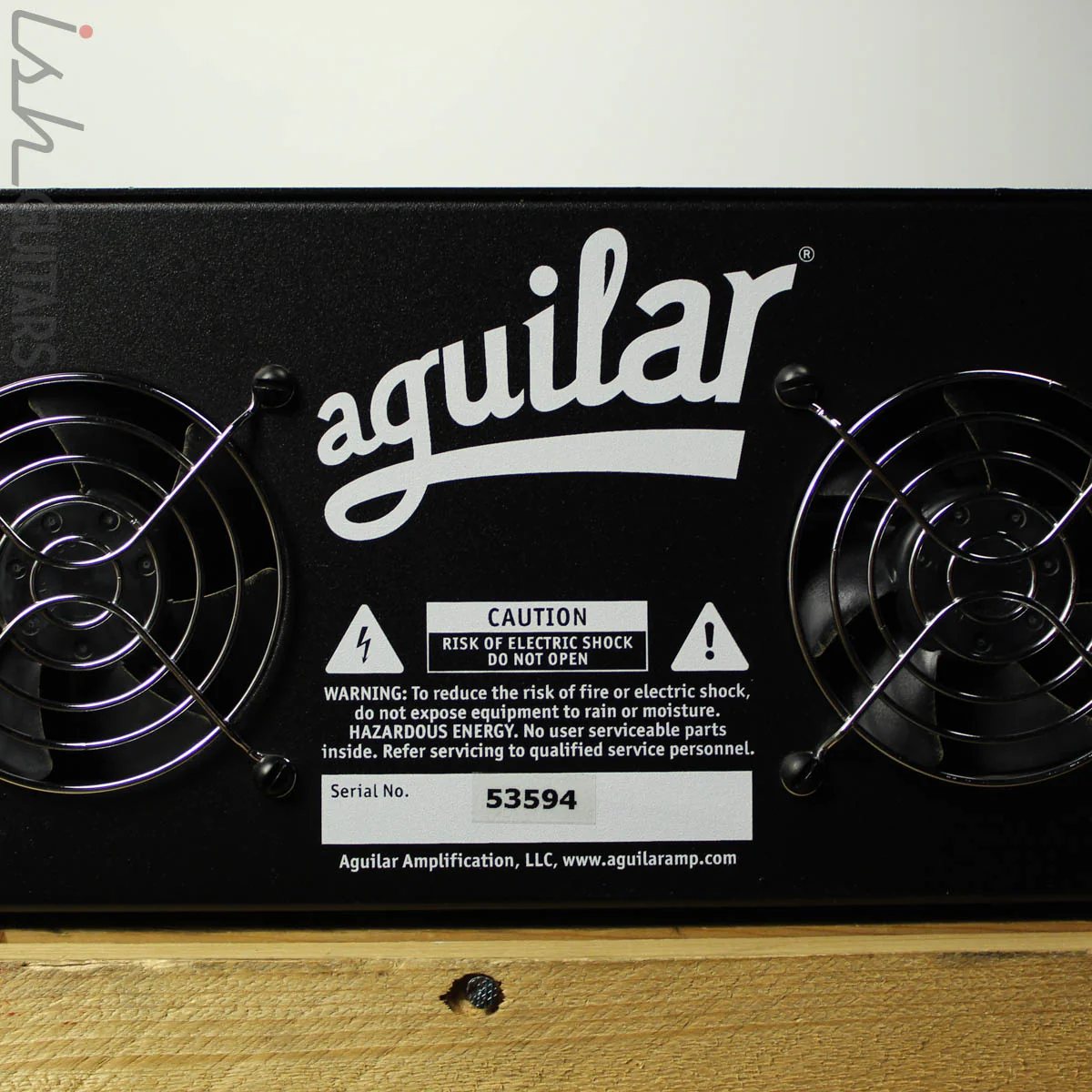

Cooling: Two high-quality whisper fans with thermal speed control
Dimensions: 17″ W x 14″ D x 5.25″ H
Rack Size: Three Spaces, Includes detachable rack ears
Weight: 42 lbs

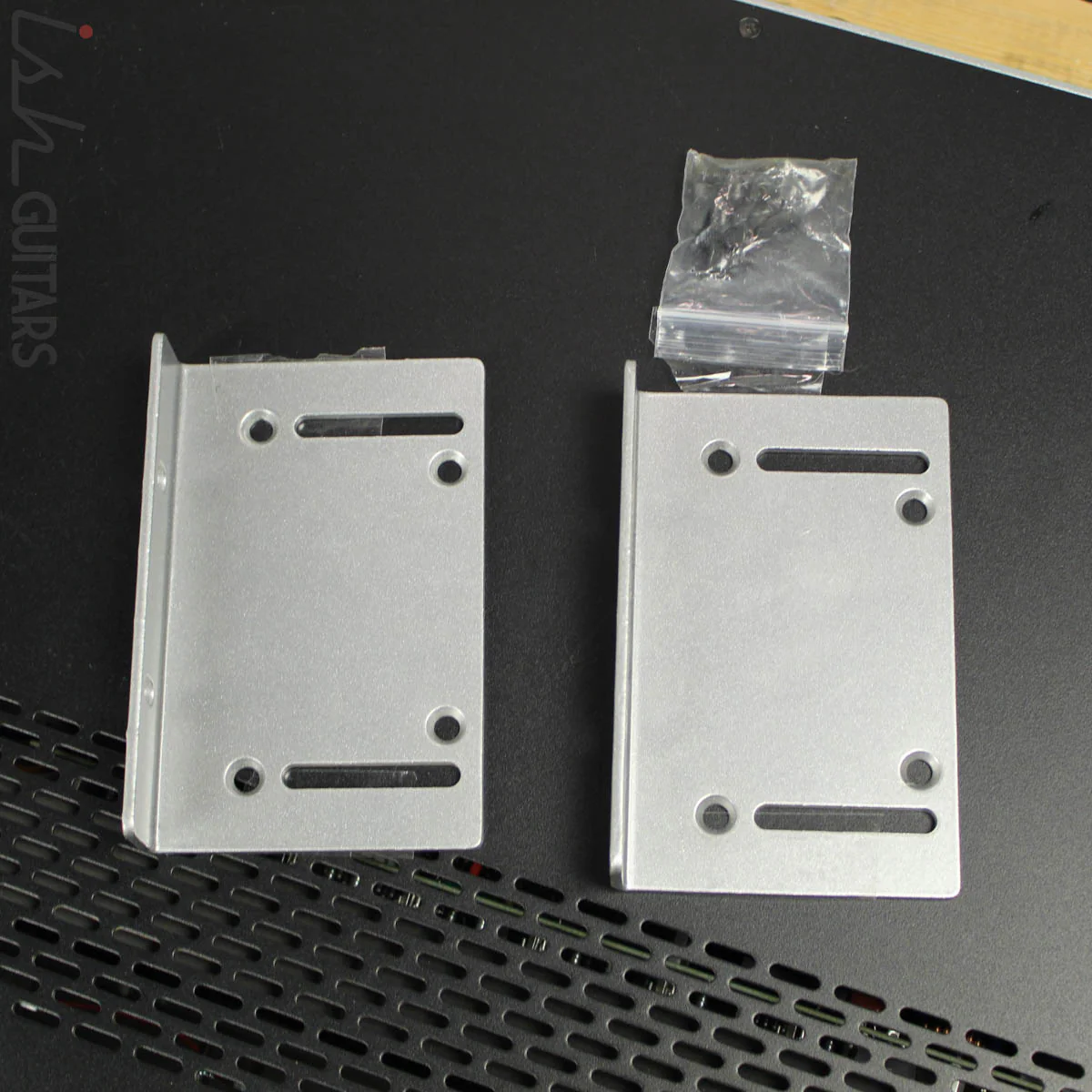

Includes: Rack Ears
